Tyre Changer / Tilt-Back / 26″ Capacity

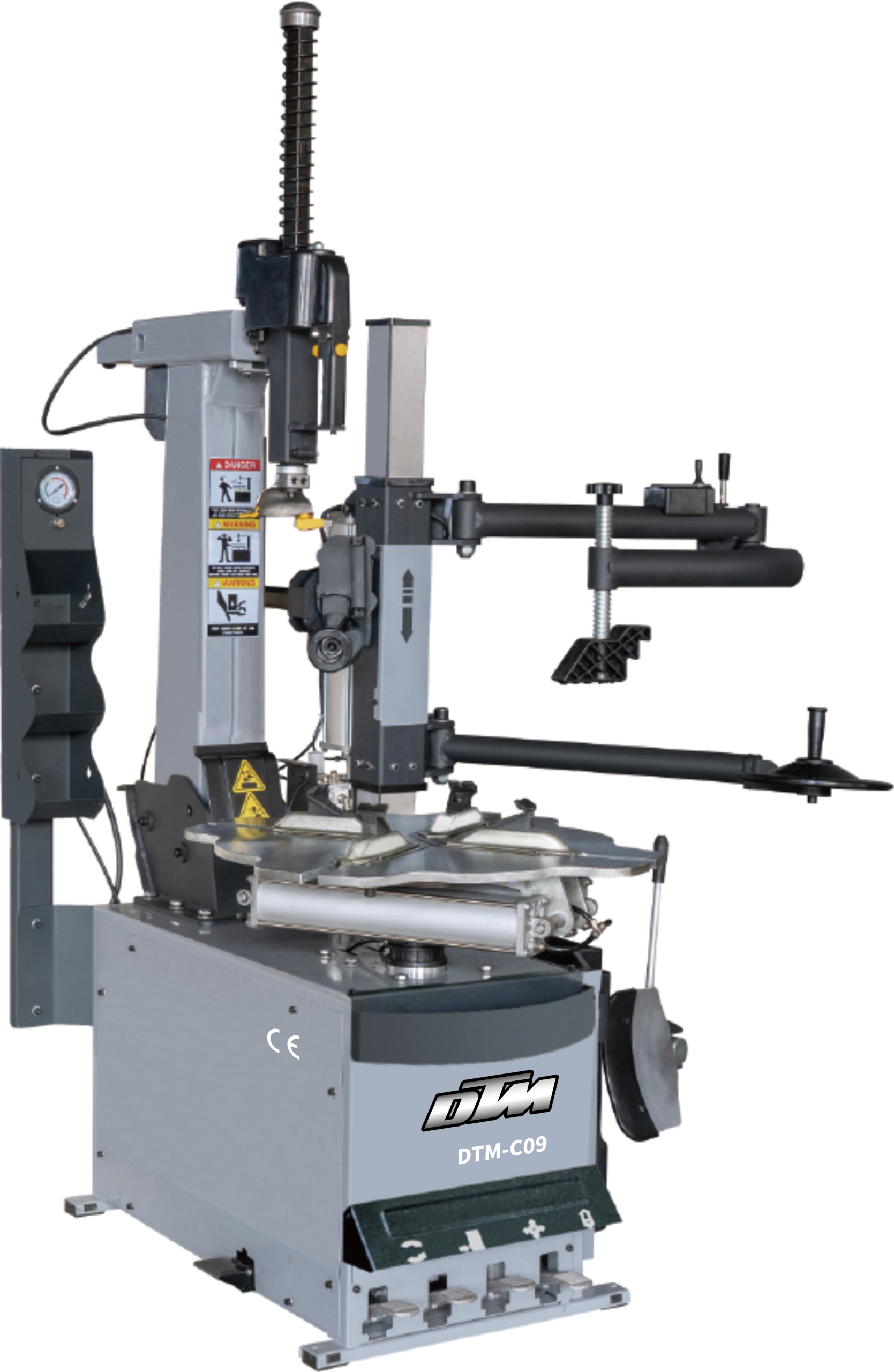

DTM-C09 Tilt-Back Tyre Changer
The DTM-C09 tyre changer is an automatic tilt-back tire changer for passenger cars and light transport vehicles. Semi-automatic tilt back tyre changer with dual assist arm for tires with a rim from 12″ to 26″ (max. wheel diameter 1143 mm./45″, max. wheel width 406mm./16″). One dual assist arm helps while mounting/demounting tire. Suggested for low-mid volume tire-shops, garages and repair shops.
| Rim Clamp From Outside | 12″-23″ |
|---|---|
| Rim Clamp From Inside | 14″-26″ |
| Max Tyre Diameter | 1120mm |
| Max Tyre Width | 12″ |
| Working Pressure | 8-10bar |
| Voltage | 415V |
| Motor Power | 0.75KW/1.1KW |
| Machine Dimensions | 1600×1600×1990mm |
| Packing Dimensions | 1170X1850X1120mm |
| Net weight/Gross weight | 325KG/381KG |
