SKU: Y21-018

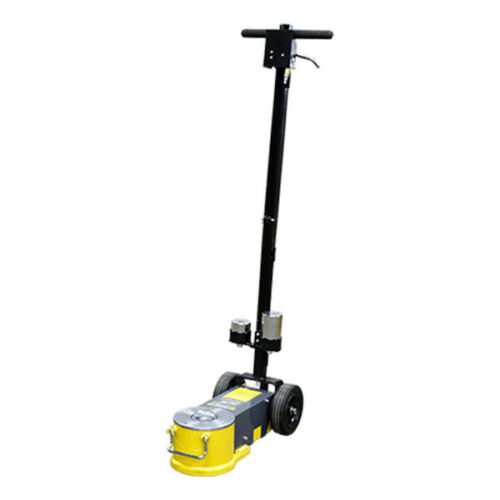

Trolley jack Multi Stage 25000kg /10000kg Air/Hydraulic AS-2615:2016 (Y21-018)

$1,399.99

or 4 fortnightly payments of $350.00 with Afterpay More info

+
-

Description

25000kg lifting   capacity
Designed for heavy   commercial use
Air-hydraulic   operation
Lowered profile for low ground-clearance vehicles
Hardened alloy-plated telescoping ram for maximum   durability
Heavy-duty steel saddle
Large rubber wheels for easy maneuverability
Compact design fits easily between tandem wheels
Dead-man controls for safe operation

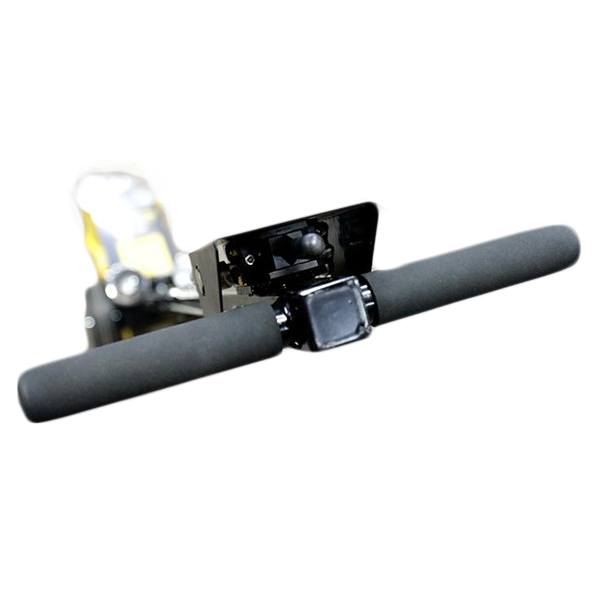

Long “T” handle for easy positioning
“T” handle can be locked in three   different positions
Double-sealed for longer service life
Air valve with integrated filter
Heavy-duty air motor provides maximum power
Sealed hydraulic unit prevents contamination
Built-in safety valve prevents jack from being used   beyond its rated capacity

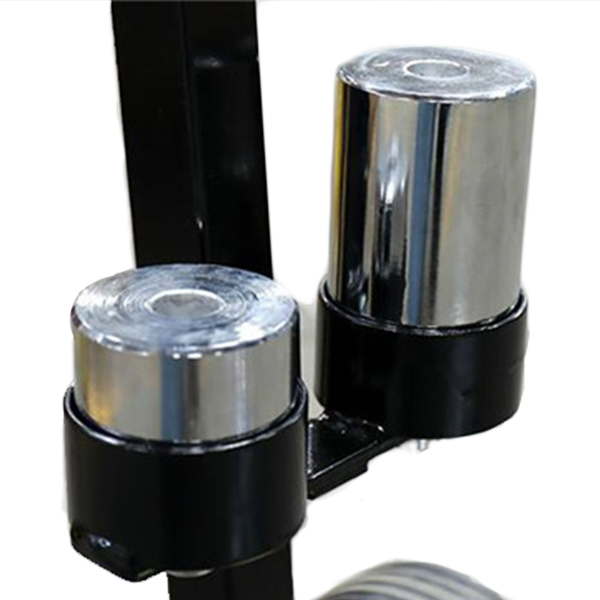

Additional lifting saddles included

Lifting   Capacity – 1st Stage : 25000 kg
Lifting Capacity –   2nd Stage : 10000 kg
Lowered Height: 6.5″ (150 mm)
Raised Height : 6” – 12″ (152 mm – 305   mm)
Chassis Width : 12.5″ (318 mm)
Chassis Length : 22.5″ (572 mm)
Shipping Weight : 110 lbs. (49 kg)
Shipping Dimensions   :  28″ x 15″ x   12″           (711 mm x   381 mm x 305 mm)
  • Australian Standards AS-2615:2016
